Sliding Engine Mount

The mount stays on. The engine comes off.

Standard mounts are one solid clamp. Every chain or sprocket change means loosening it, rocking the engine on the frame, and crushing the chassis tubes a little more each time.

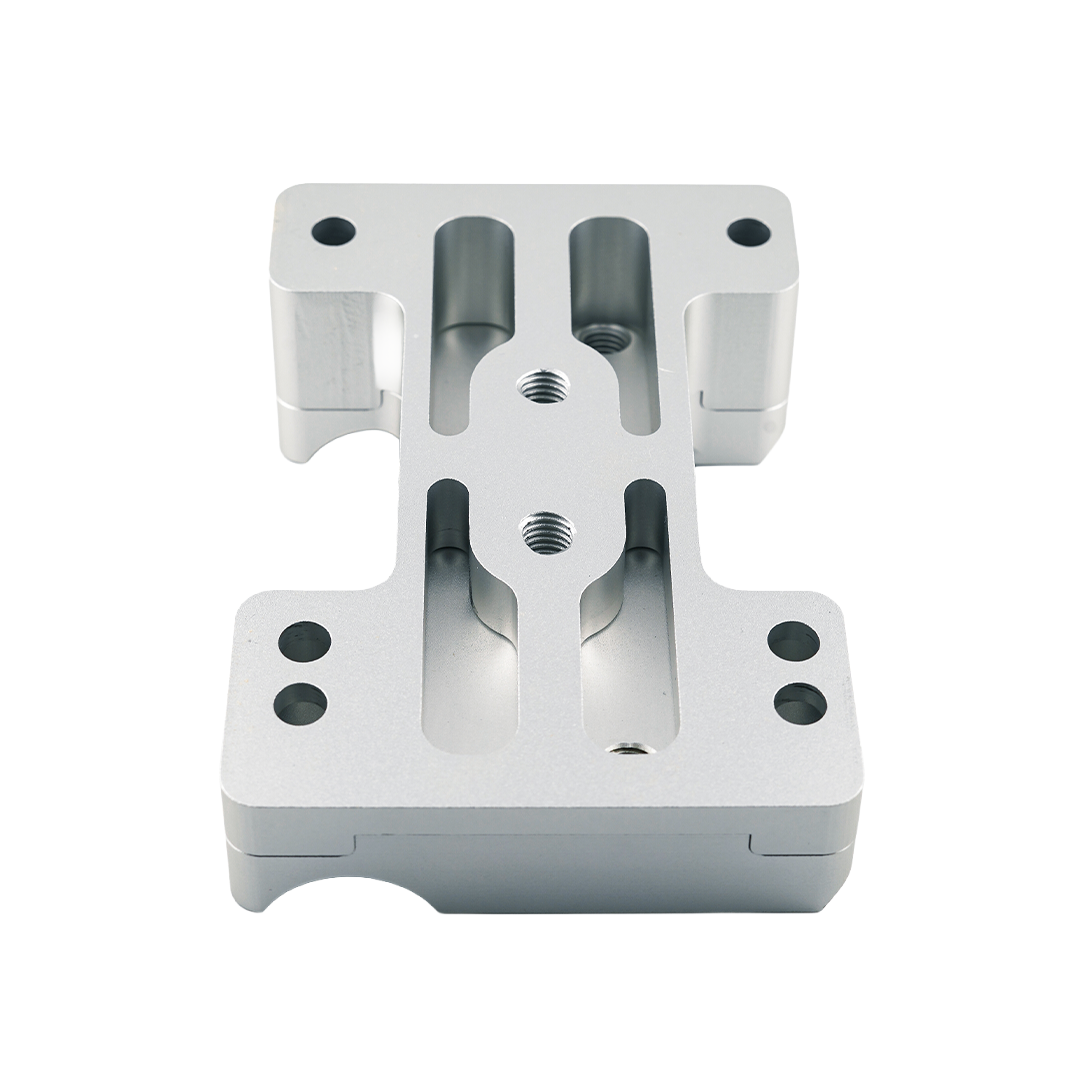

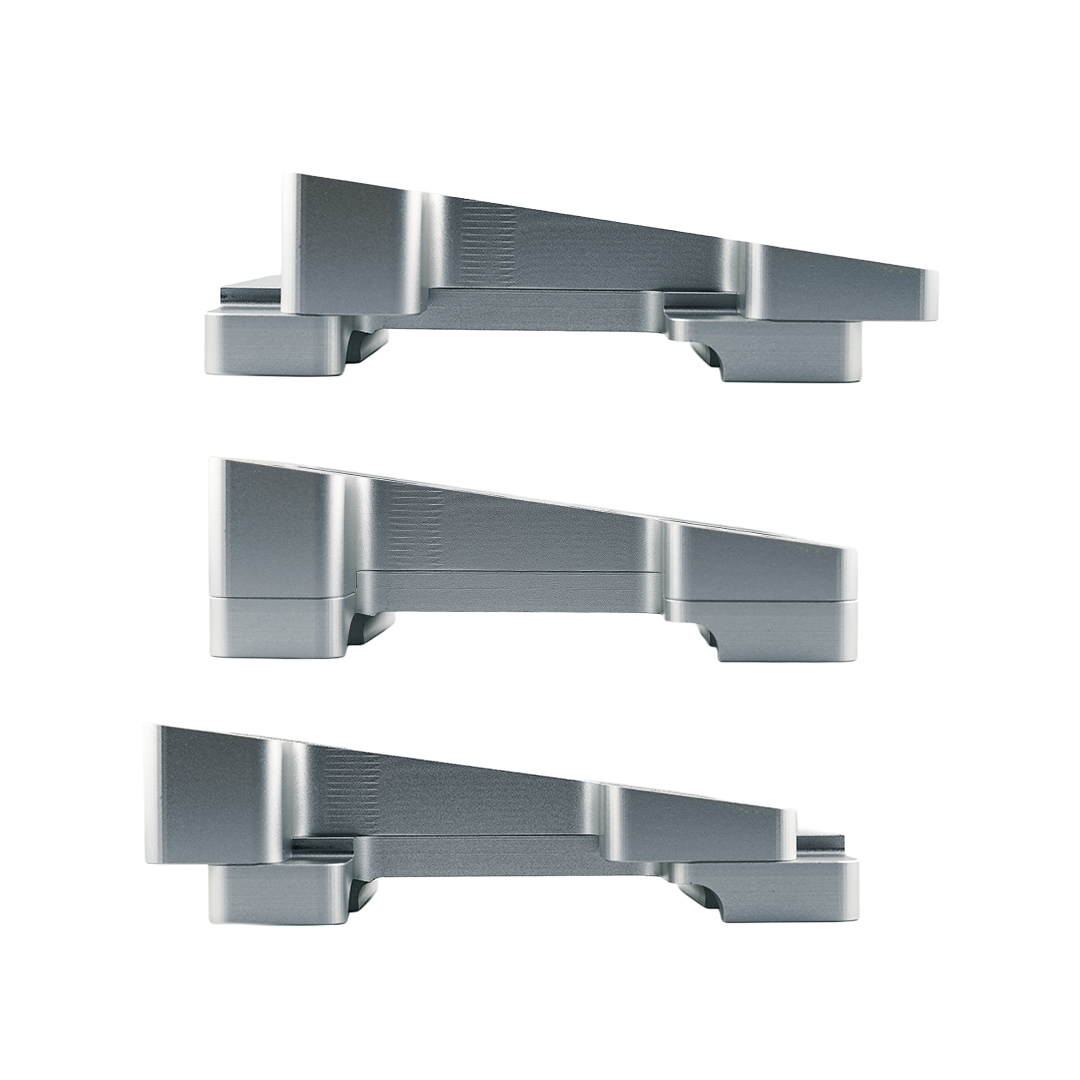

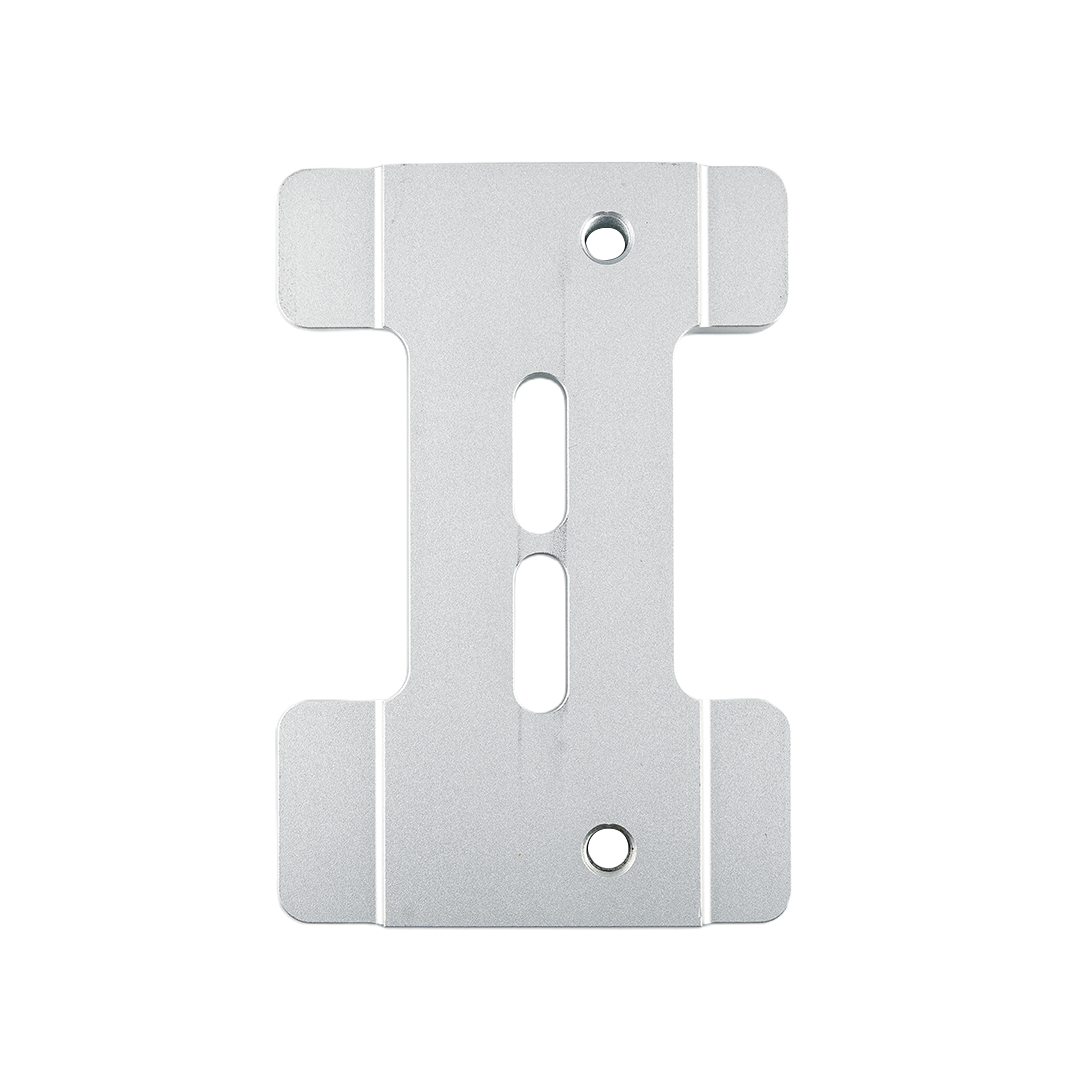

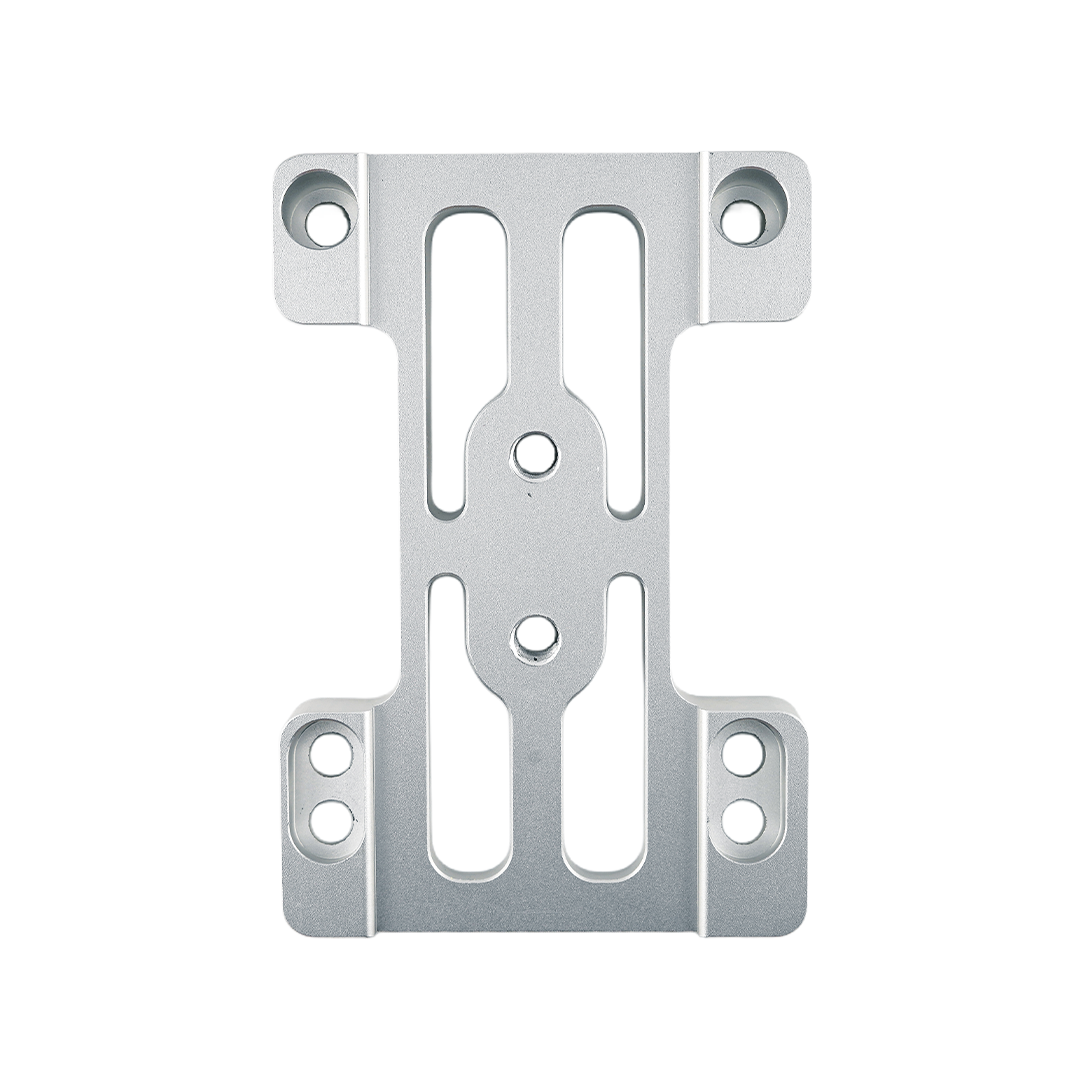

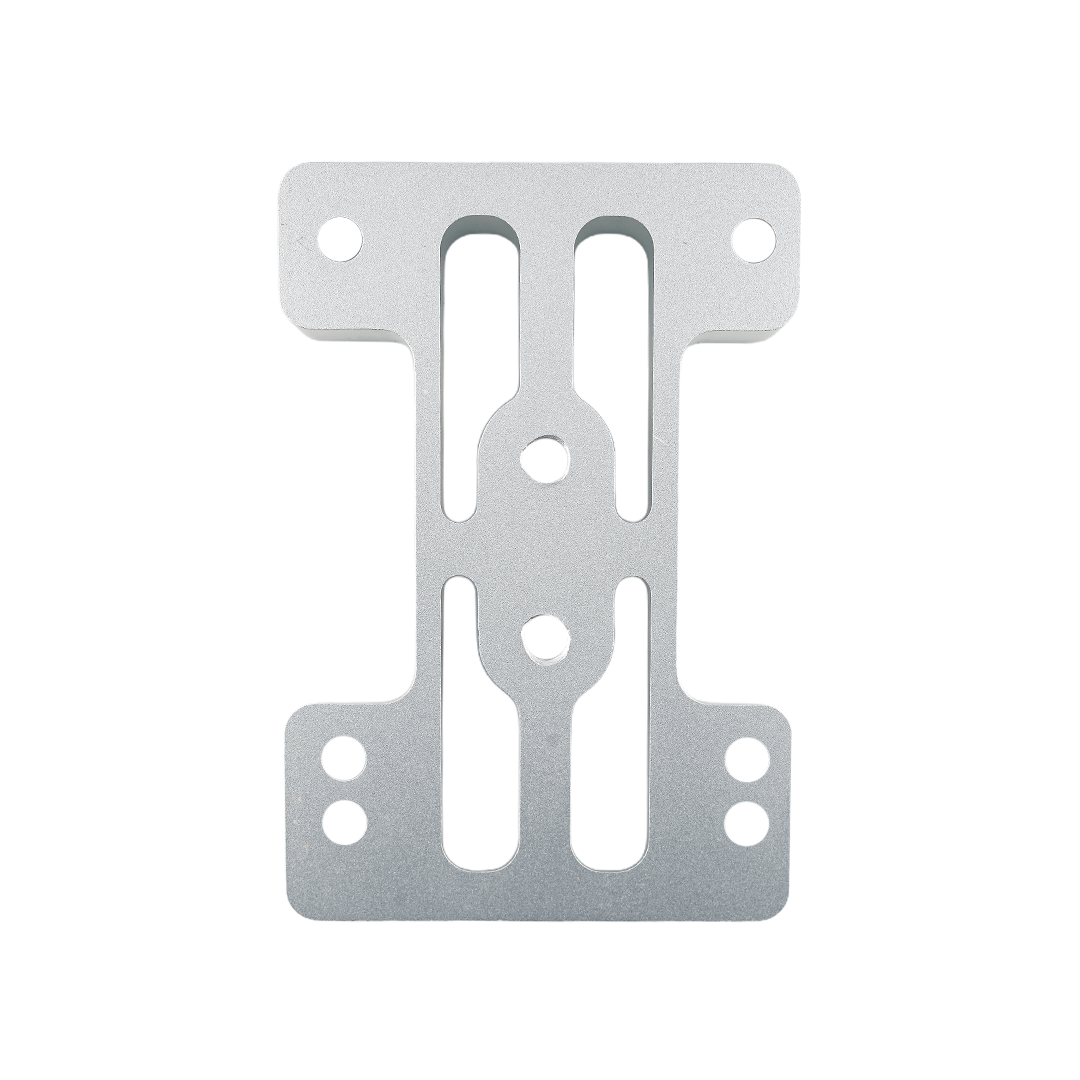

This one is two parts. The lower half bolts to the chassis, sits square to the axle, and never moves again. The upper plate bolts to the engine and stays with it. The two slide on machined rails, so chain tension is two bolts loose, slide, lock. The chassis is never touched.

No tube wear. Chain and sprocket changes in minutes. Engine swaps with a spare top plate, no mount removal. Same alignment every time, so the chain tracks true and sprockets last longer.

CNC machined from Aluminium to +/- 0.01mm. Fits IAME Mini, IAME X30, Rotax Mini & Rotax. Supplied with one top plate, extras sold separately.
